Devices to Monitor Battery State and Driving Efficiency

Tue Jun 18, 2013 2:32 pm

Nissan LEAF Canomicon:

0) My findings on the CAN bus
Developer: turbo2ltr
Debut: 2/20/2011
Although not a physical product, I put this at the top of this list since turbo2ltr :ugeek: was the first to decode the canbus and started the ball rolling for all the following discoveries and developments.

1) SOC meter (The original gid-meter)
Developer: garygid
Debut: 7/26/2011
Monitors EVcan or CARcan (not simultaneously)
Displays:
    SOC
    %Gids
    Gids
    Pack Volts
    Pack Amps
    Pack kW
    Tire Pressure
    CAnbus logging
Supports logging of all traffic on one CANbus (either EVcan or CARcan)

2) Arduino
Developer: lincomatic
Debut: 9/7/2011
Monitors: EVcan
Displays:
    Gids
    %Gids
    Pack Volts
    Pack Amps

3) LeafCAN
Developer: lincomatic
Debut: 2/18/2012
Monitors EVcan
Displays:
    SOC
    %Gids
    Gids
    kWh
    Pack Volts
    Pack Amps
    Pack kW
    DTE
Sporting a 2x16 display with more information at one viewing

4) WattsLeft
Developer: Turbo3
Debut:4/12/2012
Monitors:
Displays:
    %Gids
    Gids
    kWh
    Pack Volts
    Pack Amps
    Pack kW
    DTE
    RPM

5) CANary
Developers: (Open Source) TickTock, garygid, Turbo3, nananaleafman
Debut: 2/11/2013
Monitors: EVcan and CARcan
Displays:
    SOC
    SOH
    %Gids
    Gids
    kWh
    Ah
    Pack Volts
    Pack Amps
    Pack kW
    Cellpair Volts
    Battery Temperature
    mpkWh history
    DTE
    12V Battery Volts
    Brake Efficiency (friction vs. regen)
    Audible braking trainer
    Steering, Throttle, & Brake positions
    Brake Pressure
    Tire pressure
    Trip meter
    cellpair logging
    Full Canbus logging
Two graphical displays to enable displaying more information, a USB port for logging, and simultaneous monitoring/logging of CARcan and EVcan

6) Leaf Spy
Android App
Developer: Turbo3
Debut: 3/20/2013
Monitors: EVcan or CARcan via ELM327
Displays: Pack Volts, Pack Amps, SOC, Ah, cellpair voltages, Pack Temperature, Efficiency, DTE
    SOC
    SOH
    kWh
    Ah
    Pack Volts
    Pack Amps
    Cellpair Volts
    Battery Temperature
    DTE
    12V Battery Volts
    Tire Pressure
    Trip meter
    VIN
    Number of charge cycles
    Battery cellpair logging
Uses an off-the-shelf bluetooth adapter and an app on almost any android device for display.

7) LeafDD
Developer: GregH
Debut: 4/26/2013
Monitors: EVcan
Displays:
    SOC
    %Gids
    Gids
    kWh
    Ah
    Health
    Pack Volts
    Pack Amps
    Pack kW
    Cellpair Volts
    Battery Temperature
    mpkWh history
    12V Battery Volts

8) LEAF Logger
Developer: BayBits
Debut: 6/8/2013?
Monitors: EVcan via ELM327
Displays:
    SOC
    kWh
    Battery Temperature
    mpkWh
    Speed
    Elevation
    Trip History
App for smartphone using ELM327. Can export to SkyDrive
Last edited by TickTock on Sat Jan 25, 2014 10:05 am, edited 27 times in total.
User avatar
TickTock
Posts: 1701
Joined: Sat Jun 04, 2011 10:30 pm
Delivery Date: 31 May 2011
Leaf Number: 3626
Location: Queen Creek, Arizona
Contact: Website

Re: Canomicon

Tue Jun 18, 2013 2:33 pm

I'm sure I missed a couple - please let me know. This is just a start.
User avatar
davewill
Posts: 4769
Joined: Thu Mar 17, 2011 6:04 pm
Location: San Diego, CA, US

Re: Canomicon

Tue Jun 18, 2013 2:49 pm

Do we want to include the LEAFScan? We've heard so little lately, that it's hard to guess whether it's still going to be released.
2014 Rav4 EV, Blizzard Pearl White
2011 LEAF SL w/QC, Blue Ocean, returned at end of lease
User avatar
TomT
Posts: 10555
Joined: Sun Aug 08, 2010 12:09 pm
Delivery Date: 01 Mar 2011
Leaf Number: 000360
Location: Foothills of Granada Hills, CA
Contact: Website

Re: Canomicon

Tue Jun 18, 2013 2:56 pm

I don't think I'd include anything that is not currently available... Also, we might want to include next to each one in the fist entry, which buss(es) it monitors...

davewill wrote:Do we want to include the LEAFScan? We've heard so little lately, that it's hard to guess whether it's still going to be released.
59,991 miles/12 bars/289 Gids/68.54 AHr/101% SOH/101.64% Hx 7May15 w/ new Lizard (barely made the warranty).
71,770 miles/12 bars/256 Gids/59.04 AHr/88% SOH/87.92% Hx 3Mar16 at lease return.

Now driving a 2016 Volt Premier. Model 3 reserved.
Stoaty
Gold Member
Posts: 4460
Joined: Fri Jun 18, 2010 9:50 pm
Delivery Date: 12 Jun 2011
Leaf Number: 3871
Location: West Los Angeles

Re: Canomicon

Tue Jun 18, 2013 3:33 pm

I would change #1 (or add in parentheses) to "Original Gid Meter"
2011 Leaf with 62,000 miles given to Nephew
2013 Tesla Model S85 with 251 miles rated range at full charge
Leaf Spy Manual
Battery Aging Model Spreadsheet
User avatar
TickTock
Posts: 1701
Joined: Sat Jun 04, 2011 10:30 pm
Delivery Date: 31 May 2011
Leaf Number: 3626
Location: Queen Creek, Arizona
Contact: Website

Re: Canomicon

Tue Jun 18, 2013 4:03 pm

Stoaty wrote:I would change #1 (or add in parentheses) to "Original Gid Meter"

Funny. :lol: I actually had that precisely (as stated, in parentheses) up to about 10 seconds before submitting and at the last minute decided to keep it uniform until I had some comments about the rest of the entries.
User avatar
TickTock
Posts: 1701
Joined: Sat Jun 04, 2011 10:30 pm
Delivery Date: 31 May 2011
Leaf Number: 3626
Location: Queen Creek, Arizona
Contact: Website

Re: Nissan LEAF Canomicon

Wed Jun 19, 2013 5:49 am

OK. Started filling in information and reordered in chronological order. I am not familiar with many of these so please correct any mistakes or omissions or suggestions for better pictures. Ran out of time this morning - will work on the others later.
Last edited by TickTock on Wed Jun 19, 2013 4:55 pm, edited 3 times in total.
Stoaty
Gold Member
Posts: 4460
Joined: Fri Jun 18, 2010 9:50 pm
Delivery Date: 12 Jun 2011
Leaf Number: 3871
Location: West Los Angeles

Re: Nissan LEAF Canomicon

Wed Jun 19, 2013 6:40 am

Looks great, very informative about the various options available. Just a couple of nitpick suggestions:

1) Make the numbers the same font/size/color as each entry - looks odd when the number before each entry is in a small black font
2) The last few entries are not sized the same as the others

That's it. Excellent work!
2011 Leaf with 62,000 miles given to Nephew
2013 Tesla Model S85 with 251 miles rated range at full charge
Leaf Spy Manual
Battery Aging Model Spreadsheet
User avatar
garygid
Gold Member
Posts: 12417
Joined: Wed Apr 21, 2010 8:10 am
Delivery Date: 29 Mar 2011
Leaf Number: 000855
Location: Laguna Hills, Orange Co, CA

Re: Nissan LEAF Canomicon

Wed Jun 19, 2013 7:50 am

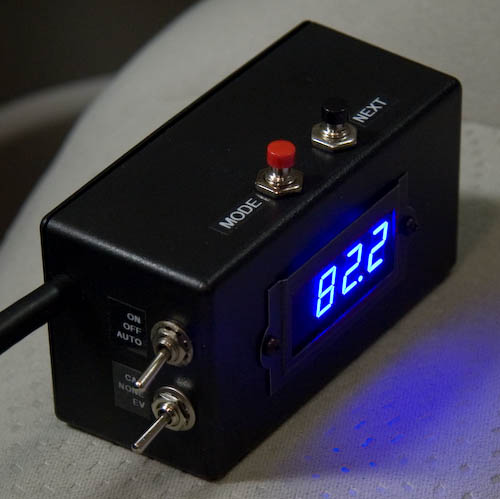

The current firmware version of the SOC/GID-Meter displays:

%GIDs (of 281), GIDs, SOC, and
Pack Amps (out and in), Volts, and computes kW (out and in).

The logging feature captures almost all the CAN Messages
on the selected CAN bus, but misses some that are too
closely spaced.

A filter (not shown) makes the large LED characters readable
even in sunlight.
See SOC/GID-Meter and CAN-Do Info
2011 LEAF, sold in 2015
2010 Prius, 2014 silver Tesla S
Nissan EVSE, mod to 240/120v 16A
PU: SDG&E
Solar PV: 33 x 225W -> 7 kW max AC
To Sell: X-treme 5000Li EV motorcycle
User avatar
TickTock
Posts: 1701
Joined: Sat Jun 04, 2011 10:30 pm
Delivery Date: 31 May 2011
Leaf Number: 3626
Location: Queen Creek, Arizona
Contact: Website

Re: Nissan LEAF Canomicon

Wed Jun 19, 2013 8:03 am

garygid wrote:A filter (not shown) makes the large LED characters readable
even in sunlight.

Yeah, I didn't like that photo, but I only had a few minutes this morning to hunt. If you can point me to a better one, I will update.
