Re: Navi safety override?

Posted: Wed Mar 21, 2012 7:00 pm
by TomT
It is not worth the better part of $200 with shipping, etc. to me, but some might find it to be a reasonable ROI..
QueenBee wrote:He hasn't updated the website yet but this is the kit he sent me:
http://www.carkitcompany.com/nissan-mur ... remote-htm" onclick="window.open(this.href);return false;

Re: Navi safety override?

Posted: Wed Mar 21, 2012 7:18 pm
by QueenBee
TomT wrote:It is not worth the better part of $200 with shipping, etc. to me, but some might find it to be a reasonable ROI..
QueenBee wrote:He hasn't updated the website yet but this is the kit he sent me:
http://www.carkitcompany.com/nissan-mur ... remote-htm" onclick="window.open(this.href);return false;
Yeah, it's spendy but I was lured in by not having to modify the OEM wiring harness and I got a discount for trying it out and taking pictures.

Re: Navi safety override?

Posted: Wed Mar 21, 2012 8:35 pm
by QueenBee
Here are the instructions I made up for installing the Car Kit Company Bypass kit.

Re: Navi safety override?

Posted: Wed Mar 21, 2012 10:25 pm
by EVDrive
Cool, I would like to add an amp with a kit like this. I don't feel like splicing any wires... Yet.

Re: Navi safety override?

Posted: Thu Mar 22, 2012 8:56 am
by DarkStar
QueenBee wrote:Here are the instructions I made up for installing the Car Kit Company Bypass kit.

http://kemp.it/keith/leaf-nav-override.html
Gotta say, that's a really slick mod.

Re: Navi safety override?

Posted: Thu Mar 22, 2012 10:45 am
by QueenBee
DarkStar wrote:
QueenBee wrote:Here are the instructions I made up for installing the Car Kit Company Bypass kit.

http://kemp.it/keith/leaf-nav-override.html
Gotta say, that's a really slick mod.
Yeah, I think there is a serious bit of a time in making all the harnesses. From what I've read it's not always easy to find the right connectors which is a shame since this way of modifying a OEM wire harness is soo much nicer than cutting into them. Tying into the HomeLink buttons is a neat feature but I probably would have been amendable to just using a physical switch.

Re: Navi safety override?

Posted: Sat Mar 24, 2012 4:52 pm
by bdl99
Hi all, I just wanted to introduce myself, I'm Brian from Car Kit Company and the makers of the remote Bypass kit.

Firstly I wanted to thank QueenBee for being the Guinea Pig and trying the kit and taking some install pictures. The harness on the Leaf was different to other Nissan Vehicles we support but everything else was the same and therefore we were very confident that it would work.

Please let me know if you have any questions, I know one question is normally around the cost and straight from our website

Q: Can you tell me about the cost, I've seen DIY instructions that only require cheap parts?

A: The value in this kit is it is completly plug and play and the plug and play harness sets this solution apart from all the others. There are no wires to cut and the kit could be removed at anytime returning the car to the factory state. This kit can be installed in 15-20 minutes by simply following the instructions, DIY solutions require cutting and splicing wires which is very time consuming and requires technical knowledge.

Re: Navi safety override?

Posted: Sat Mar 31, 2012 8:02 pm
by TonyWilliams

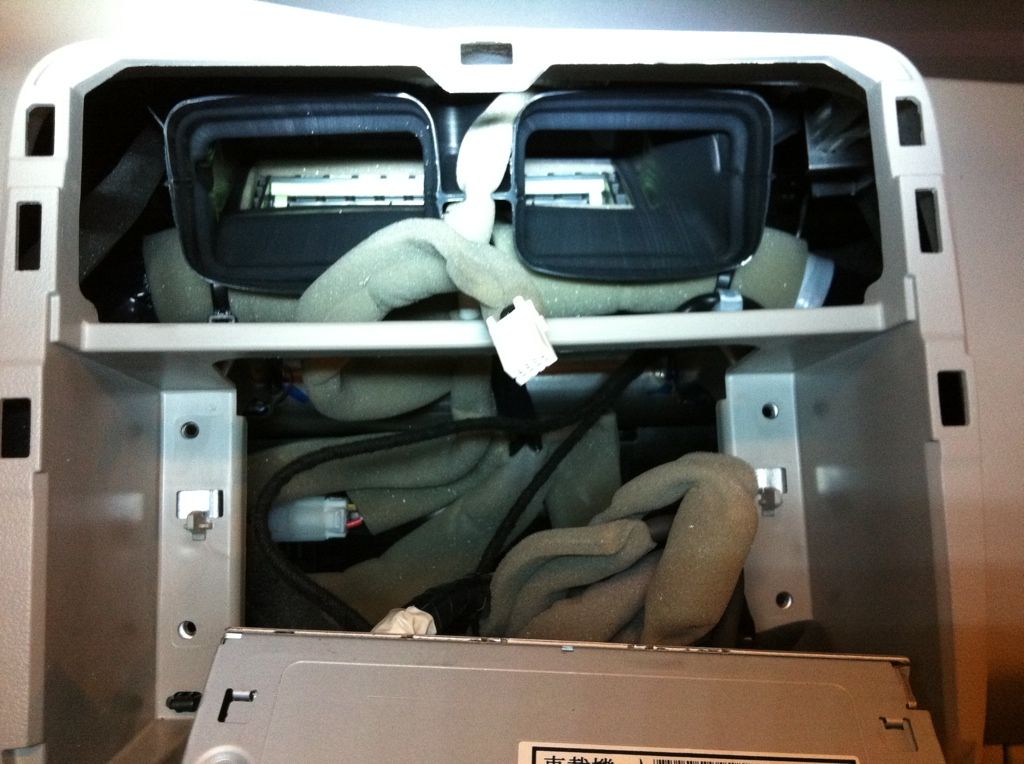

Picture with center console, with Panasonic Navigation computer removed. Super easy to get to this point. Lift black covering around the unit straight up, pull the bottom out slightly when it pops up, then lift again to unhook it from the top.

Pull top out a few inches, then remove the wire from the four-way emergency flasher button. Just push down on the center locking tab, and pull out. Just drop assembly down to the cup holders.

There are four Phillips head bolts around the Panasonic that take a somewhat long screwdriver to take out. Literally, 2 minutes so far, and one tool.



Re: Navi safety override?

Posted: Sat Mar 31, 2012 8:05 pm
by TonyWilliams

Re: Navi safety override?

Posted: Sat Mar 31, 2012 11:44 pm
by gbarry42
TonyWilliams wrote:Image
:?: : :lol:
