Rolling and Aerodynamic Drag Test Track

Tue Oct 23, 2012 9:35 pm

I drove to my uber secret test hill for testing of tire and aerodynamic drag. Here's an general description of the course to roll down:

Code: Select all

Sign *   Nomenclature   *  Elevation * Miles
1 - No Parking Bike Lane    * 1400ft * 0
2 - 7% grade.....           * 1325ft * 0.2
3 - Call Box......          * 1300ft * 0.1
4 - Watch Downhill Speed	 * 1272ft * <0.1
5 - No Park Bike Lane       * 1240ft * <0.1
6 - No Park Bike Lane       * 1177ft * 0.2
7 - No Park Bike Lane       * 1089ft * 0.2
8 - Call Box @ Parking Area * 1076ft -neg-
9 - 7% grade.....           * 1069ft -neg-
10- Watch Downhill Speed    * 1360ft * 0.1
11- No Park Bike Lane       * 1000ft * 0.1
12- 60 mph.....             *  853ft * ? (1.5 miles from first sign)
13- Lowest point(no sign)   *  810ft * ?
14- Bike Lane....           *  850ft * ?


So, I did several runs today. The first was stock and reached 84 mph @ check point 12, and 36 mph on the uphill section at check point 14. Elapsed time from a dead stop was 1:57.9 minutes. I tried rolling starts from numerous speeds. The cool part is that with the HUGE drag at the high speeds; it should be easy to measure changes in drag, both for mostly linear rolling resistance, and the aero drag.

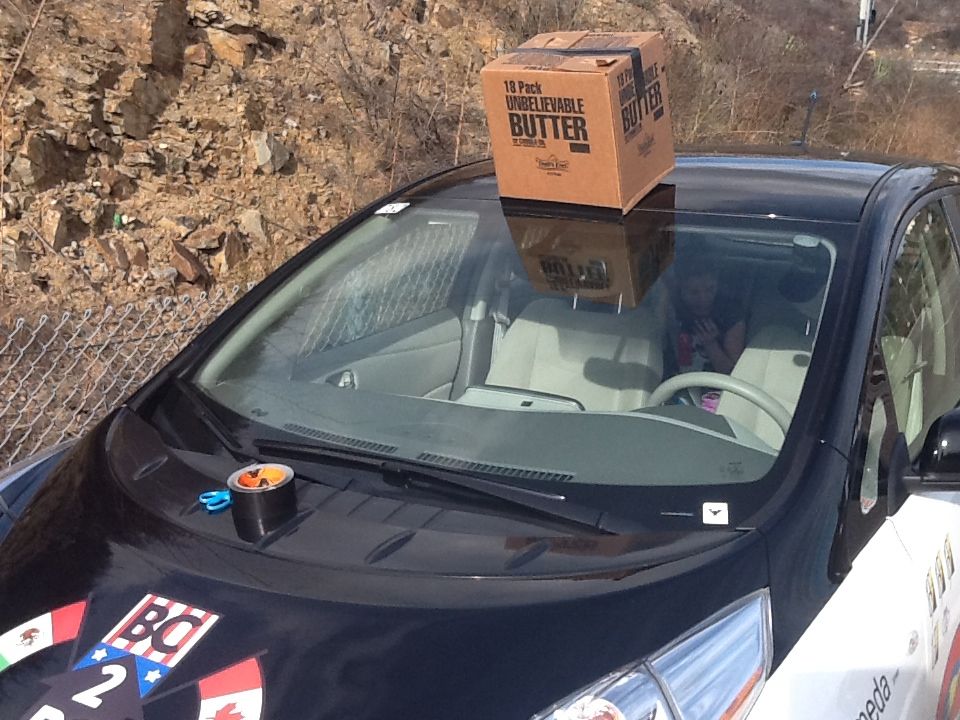

I taped a box on the same spot on the "wing" that vortex generators are typically put on airplanes (see pic below). I expected some small change, but it actually limited the speed to 73 mph !!! Woo hoo !!

Now, I can swap out tires, change ride height, tape on aero mods, and other fun projects. Let me know what I should check next!




Last edited by TonyWilliams on Tue Oct 23, 2012 10:47 pm, edited 2 times in total.

DaveinOlyWA
Posts: 14946
Joined: Sat Apr 24, 2010 7:43 pm
Delivery Date: 16 Nov 2019
Leaf Number: 319862
Location: Olympia, WA
Contact: Website

Re: Rolling and Aerodynamic Drag Test Track

Tue Oct 23, 2012 10:07 pm

this was 84 mph coasting down a hill? wow...
2011 SL; 44,598 mi, 87% SOH. 2013 S; 44,840 mi, 91% SOH. 2016 S30; 29,413 mi, 99% SOH. 2018 S; 25,185 mi, SOH 92.23%. 2019 S Plus; 11,333.1 mi, 93.73% SOH
My Blog; http://daveinolywa.blogspot.com" onclick="window.open(this.href);return false;

Herm
Posts: 3765
Joined: Sun May 23, 2010 3:08 pm
Delivery Date: 29 Aug 2012
Location: Timbuktu, Mali

Re: Rolling and Aerodynamic Drag Test Track

Tue Oct 23, 2012 10:14 pm

How about different tire pressures?.. but document tire temperature when you do that.

User avatar
TonyWilliams
Posts: 10091
Joined: Sat Feb 19, 2011 1:48 am
Location: San Diego
Contact: Website

Re: Rolling and Aerodynamic Drag Test Track

Tue Oct 23, 2012 10:19 pm

DaveinOlyWA wrote:this was 84 mph coasting down a hill? wow...
Did you notice the vertical drop in 1.5 miles? 600 feet.

Because I expect to increase speed with drag reduction, I'll have to use the lower check points to start.

User avatar
TonyWilliams
Posts: 10091
Joined: Sat Feb 19, 2011 1:48 am
Location: San Diego
Contact: Website

Re: Rolling and Aerodynamic Drag Test Track

Tue Oct 23, 2012 10:25 pm

Herm wrote:How about different tire pressures?.. but document tire temperature when you do that.
Sure, that's easy. I'll swap to the old stock wheels and tires, also. Yes, document it!!

I've got to find some yarn to tape on the windshield so I can feel like a glider :lol:

Herm
Posts: 3765
Joined: Sun May 23, 2010 3:08 pm
Delivery Date: 29 Aug 2012
Location: Timbuktu, Mali

Re: Rolling and Aerodynamic Drag Test Track

Tue Oct 23, 2012 10:40 pm

If we had an accurate way to measure energy going in-out* of the battery you could find out how efficient regen is.

*that was a hint for Enginier.. a module with a good coulomb counter in it.

thimel
Posts: 134
Joined: Fri Apr 23, 2010 6:10 pm
Delivery Date: 11 Jun 2011
Location: SF bay area

Re: Rolling and Aerodynamic Drag Test Track

Tue Oct 23, 2012 10:51 pm

Please do several runs with exactly the same conditions to see how reproducible the results are.

User avatar
Boomer23
Posts: 3553
Joined: Sun May 23, 2010 9:57 pm
Delivery Date: 30 Mar 2011
Location: Orange County, CA

Re: Rolling and Aerodynamic Drag Test Track

Wed Oct 24, 2012 12:55 am

Is the "daughter in back seat" condition reproducible? :D
2018 Tesla Model 3 Long Range RWD
2017 Chevy Bolt EV Premier Kinetic Blue
Blog: http://drivingelectric.blogspot.com" onclick="window.open(this.href);return false;

User avatar
DaveEV
Posts: 6246
Joined: Fri Apr 23, 2010 3:51 pm
Location: San Diego

Re: Rolling and Aerodynamic Drag Test Track

Wed Oct 24, 2012 12:56 am

Nice project!
thimel wrote:Please do several runs with exactly the same conditions to see how reproducible the results are.
I will second the thought to repeat runs to help reduce any noise. 3 runs on any setup would give you a good idea of how consistent any particular result is.

Looks like a few other good suggestions (tire pressure, stock vs Juke wheel/tire setup) there.

Since the box on roof (LOL at the unbelievable butter!) was so effective at reducing speed (no wonder roof racks kill efficiency), might I suggest folding in the side mirrors?

User avatar
TomT
Posts: 10650
Joined: Sun Aug 08, 2010 12:09 pm
Delivery Date: 01 Mar 2011
Leaf Number: 000360
Location: California, now Georgia
Contact: Website

Re: Rolling and Aerodynamic Drag Test Track

Wed Oct 24, 2012 7:16 am

Next you'll need some rudder pedals so you can minimize adverse yaw! :lol:
TonyWilliams wrote:I've got to find some yarn to tape on the windshield so I can feel like a glider :lol:
Leaf SL 2011 to 2016, Volt Premier 2016 to 2019, and now:
2019 Tesla Model 3; LR, RWD, FSD, 19" Sport Wheels, silver/black; built 3/17/19, delivered 3/29/19.
