Who made this AC pressure sensor? What is the part number?

Sun Feb 09, 2020 4:58 am

There is a AC pressure sensor on gen1 Leafs that have heat pump.
This sensor has a different plug compared to those that don't have heat pump capability.
This sensor is sold as a assembly with AC-pipe. No Nissan part number.

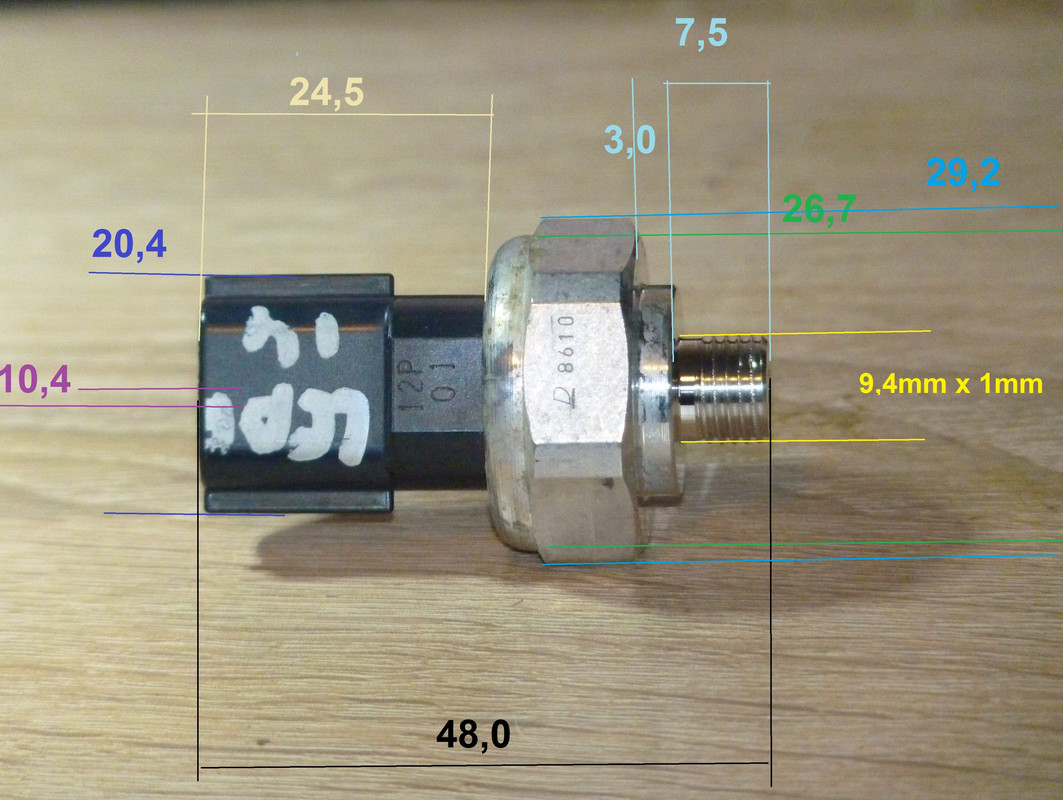

All numbers are metric. Thread is also metric (M10x1 AFAIK).

I believe the "D" is the manufacturer's logo and 8610 could be manufacturer's internal part number,
or just detail nr (similar to 12P01).
Other side has plastic formula PPS-GF30. Nothing else has been observed, even with microscope.
Who is manufacturer and on what other vehicles/devices is that sensor used?
This is extremely important for me as the sensor failed :lol:
3-pin, ground-signal-5V. Signal got stuck at 4,9V no matter the pressure. Weight: 23.8grams

Short range EVs <30kWh -- Medium range: 30-60kWh -- Long range: >60kWh
Charging: Trickle <3kW -- Normal 3-22kW -- Fast 50-100kW -- Supercharging >100kW

cwerdna
Posts: 11328
Joined: Fri Jun 03, 2011 4:31 pm
Delivery Date: 28 Jul 2013
Location: SF Bay Area, CA

Re: Who made this AC pressure sensor? What is the part number?

Sun Feb 09, 2020 5:24 am

Are you not able to find the part via https://parts.nissanusa.com/Nissan_2013 ... /HVAC.html?

I found a pressure sensor at https://parts.nissanusa.com/a/Nissan_20 ... 76A_1.html, specifically https://parts.nissanusa.com/p/Nissan_20 ... 1FA0A.html. Not sure it's right.

As you probably noticed, lots of parts in Nissans come from Calsonic (http://calsonic.com/climate-control-systems). Some sort of merger happened and now they've under the https://www.marelli-corporation.com/en/ brand.

'19 Bolt Premier
'13 Leaf SV w/premium (owned)
'13 Leaf SV w/QC + LED & premium (lease over)

Please don't PM me with Leaf questions. Just post in the topic that seems most appropriate.

arnis
Posts: 1026
Joined: Sat Jan 23, 2016 3:21 pm
Delivery Date: 23 Jul 2014
Leaf Number: 015896
Location: Estonia, Europe

Re: Who made this AC pressure sensor? What is the part number?

Sun Feb 09, 2020 5:42 am

I'm absolutely sure. If you look at the plug you will see 4 external tabs. My sensor has 2.
Short range EVs <30kWh -- Medium range: 30-60kWh -- Long range: >60kWh
Charging: Trickle <3kW -- Normal 3-22kW -- Fast 50-100kW -- Supercharging >100kW

LeftieBiker
Moderator
Posts: 15760
Joined: Wed May 22, 2013 3:17 am
Delivery Date: 30 Apr 2018
Location: Upstate New York, US

Re: Who made this AC pressure sensor? What is the part number?

Sun Feb 09, 2020 5:43 am

From Cwerdna's link:
Nissan Leaf 2011, 2012, 2013, 2014, 2015, 2016, 2017
Nissan Maxima 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010
The alternate version may be found on Maximas from the same year.
Scarlet Ember 2018 Leaf SL W/ Pro Pilot
2009 Vectrix VX-1 W/18 Leaf modules, & 3 EZIP E-bicycles.
BAFX OBDII Dongle
PLEASE don't PM me with Leaf questions. Just post in the topic that seems most appropriate.

arnis
Posts: 1026
Joined: Sat Jan 23, 2016 3:21 pm
Delivery Date: 23 Jul 2014
Leaf Number: 015896
Location: Estonia, Europe

Re: Who made this AC pressure sensor? What is the part number?

Sun Feb 09, 2020 5:45 pm

This applies to part that is on versions WithOUT Heatpump.. aka Visia in EU and S in US.
Aka with 4 external tabs.

Yes it is that bad :?
Short range EVs <30kWh -- Medium range: 30-60kWh -- Long range: >60kWh
Charging: Trickle <3kW -- Normal 3-22kW -- Fast 50-100kW -- Supercharging >100kW

LeftieBiker
Moderator
Posts: 15760
Joined: Wed May 22, 2013 3:17 am
Delivery Date: 30 Apr 2018
Location: Upstate New York, US

Re: Who made this AC pressure sensor? What is the part number?

Sun Feb 09, 2020 8:43 pm

I'm guessing that the Maxima never had a heat pump, so this is the version for Leafs with heat pump only, apparently. Salvage yards and Ebay dealers may be your only hope(s)...
Scarlet Ember 2018 Leaf SL W/ Pro Pilot
2009 Vectrix VX-1 W/18 Leaf modules, & 3 EZIP E-bicycles.
BAFX OBDII Dongle
PLEASE don't PM me with Leaf questions. Just post in the topic that seems most appropriate.

User avatar
Nubo
Posts: 5800
Joined: Fri May 28, 2010 11:01 am
Delivery Date: 31 Oct 2014
Location: Vallejo, CA

Re: Who made this AC pressure sensor? What is the part number?

Sun Feb 09, 2020 9:05 pm

How much do they want for the "assembly"? You're going to have to evacuate the system anyway...
I noticed you're still working with polymers.

arnis
Posts: 1026
Joined: Sat Jan 23, 2016 3:21 pm
Delivery Date: 23 Jul 2014
Leaf Number: 015896
Location: Estonia, Europe

Re: Who made this AC pressure sensor? What is the part number?

Mon Feb 10, 2020 3:38 pm

205€ is the part (pipe+sensor).
Actual sensor price should be 25-30€.
For example, BMW 7-series, that costs more than 100 000€ - dealer sells for 60€ - that includes like 40% profit margin.
So no...200€ is absolutely not acceptable.
Salvage Yards is my best bet, but even those sell it as a assembly with gigantic shipping fee.

Replacing the pipe is stupid - instead of 5 minutes of labor it is like 2 hours.
Dealer said: you can throw the pipe away if you want to save on labor costs :lol: What a scam.

Second bet is to get any other sensor (they all work with 3 pins and likely all 5 volts) and get the plug (already asked dealer for that other trim level Leaf plug separately: "not available", no surprise) - I can solder new plug - not sure pressure-signal graph is identical though.

Nobody knows that LOGO?
Maybe run it through image recognition software :geek:
Short range EVs <30kWh -- Medium range: 30-60kWh -- Long range: >60kWh
Charging: Trickle <3kW -- Normal 3-22kW -- Fast 50-100kW -- Supercharging >100kW

cwerdna
Posts: 11328
Joined: Fri Jun 03, 2011 4:31 pm
Delivery Date: 28 Jul 2013
Location: SF Bay Area, CA

Re: Who made this AC pressure sensor? What is the part number?

Mon Feb 10, 2020 6:45 pm

D could be Denso (e.g. https://www.denso.com/global/en/product ... ditioning/) since they italicize their brand name and definitely make automotive HVAC systems. IIRC, my '13 Leaf SV has a reversing valve (for heat pump) from Denso, which is a little unusual given how much Nissan buys from Calsonic.

I don't see any other logical companies at https://www.tokyo-motorshow.com/en/outl ... _list.html.
Last edited by cwerdna on Mon Feb 10, 2020 6:53 pm, edited 1 time in total.

'19 Bolt Premier
'13 Leaf SV w/premium (owned)
'13 Leaf SV w/QC + LED & premium (lease over)

Please don't PM me with Leaf questions. Just post in the topic that seems most appropriate.

LeftieBiker
Moderator
Posts: 15760
Joined: Wed May 22, 2013 3:17 am
Delivery Date: 30 Apr 2018
Location: Upstate New York, US

Re: Who made this AC pressure sensor? What is the part number?

Mon Feb 10, 2020 6:52 pm

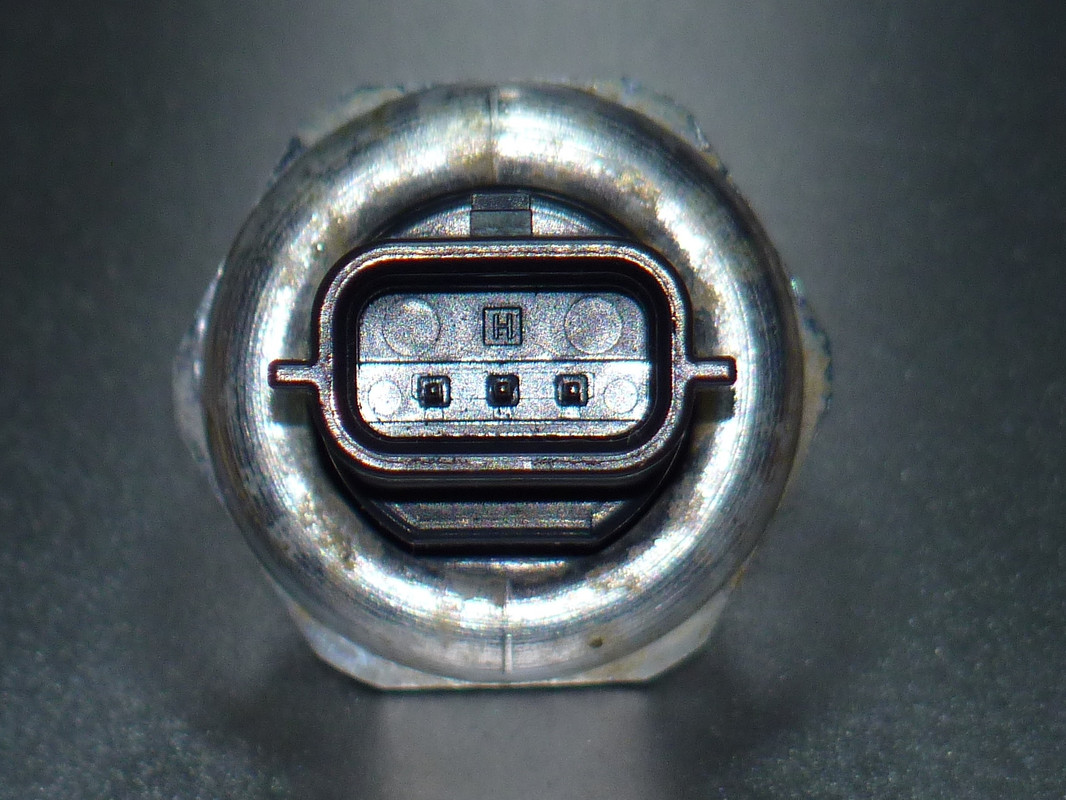

I think that Cwerdna got it. They likely make the heat pump and this sensor looks like it has a three wire plug/socket:
